Rigid Shrinkable Polyolefin Custom Heat Shrink Sleeves Red White Blue Black Yellow And Green.

rigid wire marking

typing system

shrinkable wire marking

typing system

Place of Origin:

China

Brand Name:

Qiaoguang

Document:

Product Brochure PDF

Request A Quote

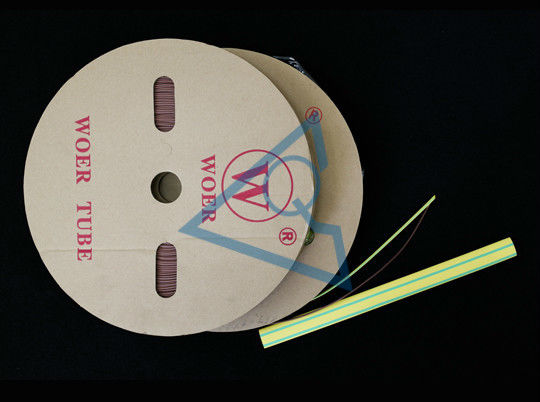

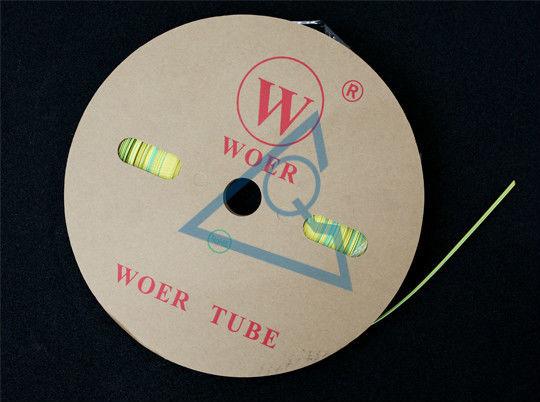

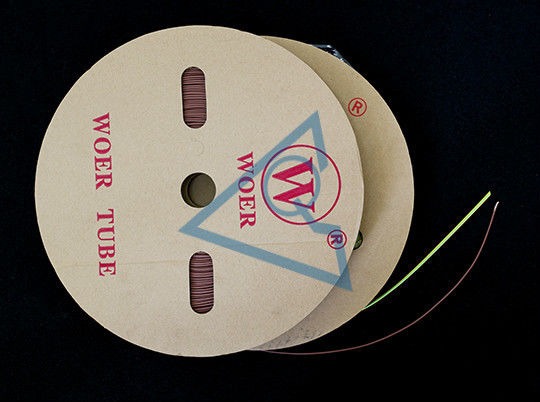

Rigid Shrinkable Polyolefin Custom Heat Shrink Sleeves Red White Blue Black Yellow And Green.

Product Details

Specjncation:

Put The Sleeve On The Desired Product, And Then Heat It With A Hot Hair Dryer To Hold The Product Tightly. And The Product Can Be Used For Insulation Protection And Color Separation.

Operation:

Advanced Rigid Shrinkable Polyolefin With 50% Thermal Shrinkage

Color:

Red, White, Blue, Black, Yellow, And Green.

Customization:

Support

Packing:

Carton

Highlight:

rigid wire marking

typing system

shrinkable wire marking

typing system

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

Carton,Negotiation

Delivery Time

2 days after receiving full payment

Payment Terms

L/C, T/T, Western Union,Paypal,ALiPay

Supply Ability

20000pcs

Flame Retardant PVC Circle Word Wire Marking Tube ROHS 1.0 Number Tube

Get Best Price

Heat Shrink Sleeve / Electrical Heat Shrink Tubing With Radiation Crosslinked Polyolefin

Get Best Price

Soft Crosslinked Polyolefin Custom Heat Shrink Tubing / Electrical Shrink Tube Anti Rust

Get Best Price

-40~105 ℃ Heat Shrink Tubing Composed Of Radiation Crosslinked Polyolefin Material

Get Best Price

86-0519-86972990

Contact Now

Product Description

Heat Shirung Sleeve

1. Material: This heat shrinkable tube is composed of radiation crosslinked polyolefin material.

2. Operating temperature: -40~ 105 ℃

3. Product features: excellent physical, chemical and electrical properties, the main functions are electrical insulation of connectors, anti-rust and anti-corrosion of solder joints, mechanical protection and wiring harness;

The heat shrinkage rate is 2:1; low smoke, halogen-free, non-toxic, soft, flame retardant;

4. Product color: black, white, red, yellow, blue, green, brown and transparent;

5. Scope of application; widely used in electronics, communications, railways, automobiles, ships, aircraft manufacturing, and other fields.

6. Certification: ROHS + halogen-free EN45545 DIN5510;

Technical indicators:

performance	indicator	performance	indicator
tensile strength	≥10.4 MPa	Thermal shock resistance	No cracks, no dripping
elongation at break	≥200 %	breakdown strength	≥15 kV/mm
Withstand voltage (rated voltage600V)	passed	volume resistivity	≥10¹⁴Ω.cm

Specifications	shrink size	Packaging	Specifications	*shrink size	Packaging
HS-1.5	0.9-1.2	400m	HS-18	10.8-14.4	100m
HS-2.0	1.2-1.6	400m	HS-20	12-16	100m
HS-2.5	1.5-2.0	400m	HS-22	13.2-17.6	50m
HS-3.0	1.8-2.4	400m	HS-25	15-20	50m
HS-3.5	2.1-2.8	400m	HS-30	18-24	50m
HS-4.0	2.4-3.2	400m	HS-35	19.2-25.6	50m
HS-5.0	3.0-4.0	200m	HS-40	32-24	50m
HS-6.0	3.6-4.8	200m	HS-45	23.5-38	25m
HS-7.0	4.2-5.6	100m	HS-50	30-40	25m
HS-8.0	4.8-6.4	100m	HS-60	36-48	25m
HS-10	6.0-8.0	100m	HS-70	42-56	25m
HS-12	7.2-9.6	100m	HS-80	48-64	25m
HS-13	8.0-10.5	100m	HS-90	52-75	25m
HS-14	8.4-11.2	100m	HS-100	60-80	25m
HS-15	9.0-11.8	100m	HS-120	72-96	25m
HS-16	9.6-12.8	100m	HS-150	80-105	25m
